Excel Setup

What it is

The Excel modules let you place orders into one or many accounts straight from a spreadsheet. There is a ready-made workbook, the Order Pad, that places your orders and tells you what happened to each one, and the full set of API functions for anyone who codes strategies in VBA (Excel macros).

How it connects

Excel talks to AutoTrader Web directly, over the internet. There is no second program to install and nothing that has to stay running in the background.

Before you begin

Have these ready first:

• Excel 2010 or newer on Windows, with macros enabled.
• An AutoTrader Web account.
• At least one broker account added as a pseudo account.

Download and import

1. Sign in to your account at webx.stocksdeveloper.in
2. Go to Tools → Library
3. Click Download on the Excel card, and enter your AutoTrader password when asked
4. Save and extract the zip file. It holds three files:
   • AutoTraderConfig.bas — your API key and a few settings
   • AutoTraderWebDirect.bas — all the API functions
   • AutoTraderClientDirect.bas — the bulk order buttons
5. Open your workbook and press Alt + F11 to open the VBA editor
6. Choose File → Import File and import all three files
7. Save your workbook as a macro-enabled workbook (.xlsm)

The download already has your API key inside it. That is why the page asks for your password before it gives you the file.

Keep this file to yourself. Anyone who has it can place orders in your accounts. Do not e-mail it, and never attach it to a support request or a forum post.

Where your key lives

Your key sits in one module: AutoTraderConfig. If you ever need to change it, open the VBA editor, edit that module and save.

The same module holds a few optional settings, such as how long the modules re-use portfolio data before asking again, and a switch to print every request and reply to the Immediate window while you are setting things up.

Warnings to clear first

Excel may show the warnings below. Here is what to do for each (see the screenshots that follow).

• Enable Editing
• Enable Content (Enable Macros)
• Unblock Macros
  • Open Windows File Explorer and go to the folder where you saved the file.
  • Right-click the file and choose Properties from the context menu.
  • At the bottom of the General tab, select the Unblock checkbox and select OK.

See the screenshots below for more details.

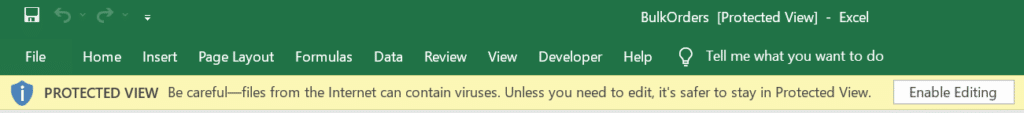

Enable Editing

Enable Macros

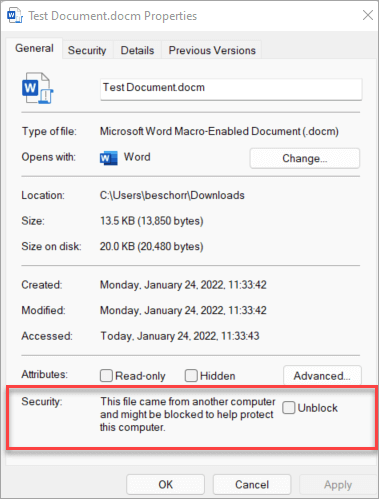

Excel – Unblock Macros

The Order Pad

The Order Pad is a ready made workbook that places orders into one account or many, and tells you what happened to each one. Download it from the Excel Utilities folder.

It writes your broker’s order id, the status and the reason next to every order it sends, so you never have to go somewhere else to find out whether a run worked.

You can make as many copies as you like. Many users keep one copy per strategy. These are normal Excel files, so you can auto fill the order data with Excel formulae or macros.

Set it up once

There is nothing to import. Every module the Order Pad needs is already inside the workbook.

1. Open the downloaded workbook and clear the warnings above
2. Put your API key in the Value column on the Configuration sheet
3. Save the workbook

Your API key is in AutoTrader Web under Settings → Security. It is hidden, so click Reveal, type your AutoTrader password, then click Copy.

Once your key is in it, this file can place real orders in your accounts. Treat it like a password: do not e-mail it and do not attach it to a support request.

The sheets

Sheet	What it is for
Configuration	Your API key, the allocation mode, and a time to place at
Orders	What you want to place. One row per order
Accounts	Which accounts to place for, and how much each one gets
Results	What happened. Written by the tool
Help	How to use it, with example order rows you can copy

The buttons

The buttons sit along the top of the Orders, Accounts and Results sheets, and stay in place as you scroll.

Button	What it does
Check accounts	Reads each ticked account and shows its free margin. Places nothing
Place orders	Tells you how many real orders that is, asks you to confirm, then sends them
Refresh	Re-reads the status of everything already in Results
Arm timer	Places automatically at the time on the Configuration sheet
Cancel timer	Cancels an armed timer. While one is armed, this button counts down to it
Clear results	Empties the Results sheet. This clears the sheet only. It cancels nothing at your broker

Press Check accounts before a big run. It catches a wrong account name before you send fifty orders, not after.

Every button checks its own basics first and tells you everything that is wrong in one go, rather than one problem at a time. A missing API key, an account with no tick, a LIMIT order with no price: none of these reach your broker.

Hover over any column heading for a note on what belongs in it.

Sending one order to many accounts

Leave the Account column on an order row blank. That order then goes to every account you ticked on the Accounts sheet. Fill the Account column in and that row goes to that one account only.

How much each account gets is set by Allocation mode on the Configuration sheet:

• SAME: every account gets the quantity on the order row
• PER ACCOUNT: every account gets its own quantity from the Accounts sheet
• SPLIT: the order quantity is divided across accounts in proportion to Weight. Rounding leftovers go to the first account, so the pieces always add back up

There is no limit on the number of orders. The tool stops when it reaches a blank row. The accounts you list must be pseudo accounts.

Placing at a set time

Put a time such as 09:20:00 on the Configuration sheet and press Arm timer. Your orders go out when that time arrives, and the Cancel timer button counts down so you can see it is armed. This is useful if you want your orders entered exactly when the market opens.

It uses your computer’s clock, so make sure your system time is correct, and leave the workbook open.

More information

Find the correct Exchange & Symbol from the Global Instrument Search system. Remember to use the Broker Independent Symbol assigned by AutoTrader.

The Help sheet inside the workbook has example order rows you can copy and edit. Nothing on that sheet is read by the tool, so the Orders sheet arrives empty. Opening the file and pressing a button can never place an example order.

What you see when orders are placed

Each order waits for your broker’s answer, so a run across many accounts takes a little longer and tells you what actually happened.

At the end you get one message saying how the run went. If anything failed, that message names the reason. The Results sheet then has a row per order, with three possible answers:

• An order id: your broker took it. That id is the one in your order book
• NOT PLACED: nothing reached your broker. Safe to fix and run again
• UNCONFIRMED: the order reached your broker and your broker never answered. It may be live

If anything is unconfirmed, check your order book before running the sheet again. Running it again would place those orders a second time.

Your broker’s order book takes a few seconds to catch up, so a status read straight after placing is often still the old one. Run OrderPadRefresh a few seconds later to bring Results up to date.

Writing your own VBA

The AutoTraderWebDirect module exposes every API function. Place an order like this:

Dim orderId As String

' Look up the exchange and symbol with the Global Instrument Search,
' then read them from cells, or set them here.
Dim exchange As String: exchange = Range("B1").Value
Dim symbol As String: symbol = Range("B2").Value

orderId = PlaceOrder("MY-ACCOUNT", exchange, symbol, "BUY", "MARKET", _
    "INTRADAY", 1, 0, 0)

If orderId = AT_UNCONFIRMED Then
    ' Reached the broker, never confirmed. Check the order book.
ElseIf orderId = "" Then
    ' Not placed. Safe to try again.
Else
    ' Placed. This is your broker's order id.
    Debug.Print GetOrderStatus("MY-ACCOUNT", orderId)
End If

Reading works the same way it always did, and a sheet full of read functions costs one request rather than one per cell — the modules keep a short-lived copy of your portfolio.

Place orders from a button or a macro, never from a worksheet formula. Placing waits for your broker, and a formula that waits will make the sheet feel stuck.

Reading your portfolio by column name

Alongside the GetHoldingQuantity / GetPositionNetQuantity / GetOrderStatus functions, which have not changed, you can pick a row out of your portfolio and then read any field on it by name.

Four functions find a row:

Function	Finds
AtFindHolding(account, exchange, symbol)	one holding
AtFindPosition(account, category, type, exchange, symbol)	one position
AtFindOrder(account, orderId)	one order
AtFindMargin(account, category)	EQUITY, COMMODITY or ALL

AtFound tells you whether the row exists. This matters: a holding you do not have and a lookup that went wrong both read as 0, and only AtFound separates them.

AtText and AtNum then read a field by name. Names are the column names your data already uses, and upper or lower case both work — QUANTITY, PNL, LTP, AVGPRICE, ISIN, STATUS, TRADETYPE, NETQUANTITY and so on. Ask for a name that does not exist and you get a blank, never a different field by mistake.

Dim h As String
h = AtFindHolding("MY-ACCOUNT", "NSE", "IOC")

If AtFound(h) Then
    Debug.Print AtText(h, "QUANTITY")
    Debug.Print AtText(h, "AVGPRICE")
    Debug.Print AtNum(h, "PNL")
End If

Straight into a cell

These are reading functions, so they also work as ordinary worksheet formulas — no macro and no button needed:

=AtText(AtFindHolding("MY-ACCOUNT", "NSE", "IOC"), "QUANTITY")
=AtNum(AtFindMargin("MY-ACCOUNT", "EQUITY"), "AVAILABLE")

This is reading only. Keep placing orders in a button or a macro, as above.

Going through a whole portfolio

You can also walk your portfolio without knowing the symbols in advance, which the older functions cannot do:

Dim i As Long, p As String

For i = 1 To AtPositionCount("MY-ACCOUNT")
    p = AtPositionAt("MY-ACCOUNT", i)
    Debug.Print AtText(p, "INDEPENDENTSYMBOL"), AtText(p, "NETQUANTITY")
Next i

AtHoldingCount / AtHoldingAt and AtOrderCount / AtOrderAt work the same way.

Rows are numbered from 1, not from 0. Start at 1 and end at the count, exactly as above. A loop written from 0 reads nothing at all for the first row and stops one row short — and it does that quietly, with no error, so it looks like missing data rather than a mistake in the loop.

API functions

A detailed explanation, with examples, is provided for each function in the API documentation.

Portfolio summary functions

The portfolio summary functions — GetPortfolioMtm, GetPortfolioPnl, and the position and order counts — are not part of these modules. Use the position and order functions instead. For example, add up GetPositionMtm for the positions you care about.

Holdings

Holdings functions are new in Excel. GetHoldingQuantity, GetHoldingAvgPrice, GetHoldingPnl and the rest work the same way as the position functions, and take your account and the symbol.
