AutoTrader Web

The process to onboard a 5paisa account on AutoTrader Web.

Demo

Step 1: Totp Key

1. Install Google Authenticator app on your phone
2. To get TOTP Key, you need to setup TOTP on 5Paisa
3. Login to 5Paisa website
4. Click on your login id on the top right corner to bring out the menu
5. Go to menu Profile -> TOTP
   1. Note: If you already have TOTP enabled, but do not have the “Totp Key“. Then please disable the TOTP & enable again.
6. Click Enable external TOTP
   1. Enter OTP received on your phone/email
   2. Enter your 6-digit MPIN
   3. Scan the QR code in your Google Authenticator app
   4. Copy the TOTP KEY showed below the QR code & save it in notepad for later use
   5. Enter the TOTP shown in Google Authenticator app
   6. Click Enable button
   7. You will see a message “Totp successfully enabled.”

Screenshots

---

Step 2: Generate APIs

1. Login to 5Paisa website

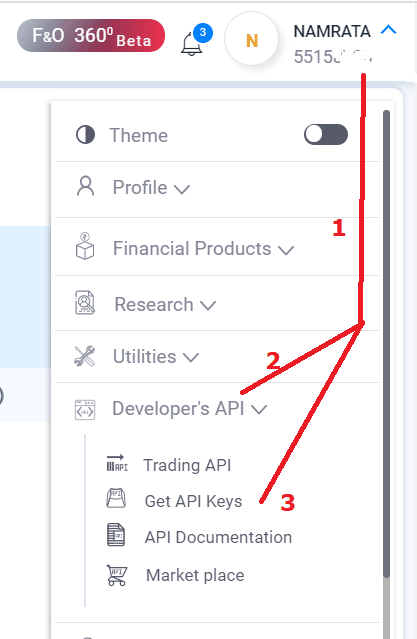

2. Click on the menu on top right next to your name (see screenshot below)
   1. Go to menu Developer’s APIs -> Get API Keys (see screenshot below)
   2. Keep this page open & go to next step

Screenshots

Step 3: Add Trading Account

1. Login to AutoTrader Web
2. Go to menu (Settings -> Trading Accounts)
3. Click the Create button
   1. For ease of understand see mapping screenshot below
   2. Select Broker: 5Paisa
   3. Select Platform: FP_API_TOTP
   4. Enter your 5Paisa login id
   5. Enter your 6-digit MPIN
   6. Enter your TOTP Key
   7. User key is your user key in API details
   8. App source is your app source in API details
   9. Click Validate button
   10. Once you see a success message, click Save button
4. Note: We have see occurrences of (UserKey Not Found) error for newly created APIs. It seems 5Paisa takes some time to activate the APIs. So in such cases, please try after a few hours or on next day of API creation.
