Now, let’s take a look at how to add Mastertrust account in Stocks Developer.
Let’s understand how to add a Mastertrust account in AutoTrader Web.
AutoTrader Web uses Mastertrust trading APIs which are complete FREE.
Demo
Step 1: Generate API Key
- Login to Mastertrust API Console with your Mastertrust account credentials
- Click the CREATE APP button
- Enter App Name: MyTradingApp
- Redirect URI: https://api.stocksdeveloper.in/oauth/mastertrust
- Click CREATE APP
- See below (Screenshot 1: Create App)
- IMPORTANT: After this you will get App ID & App Secret (Save these in a notepad)
- See below (Screenshot 2: App Details)
Screenshot 1: Create App

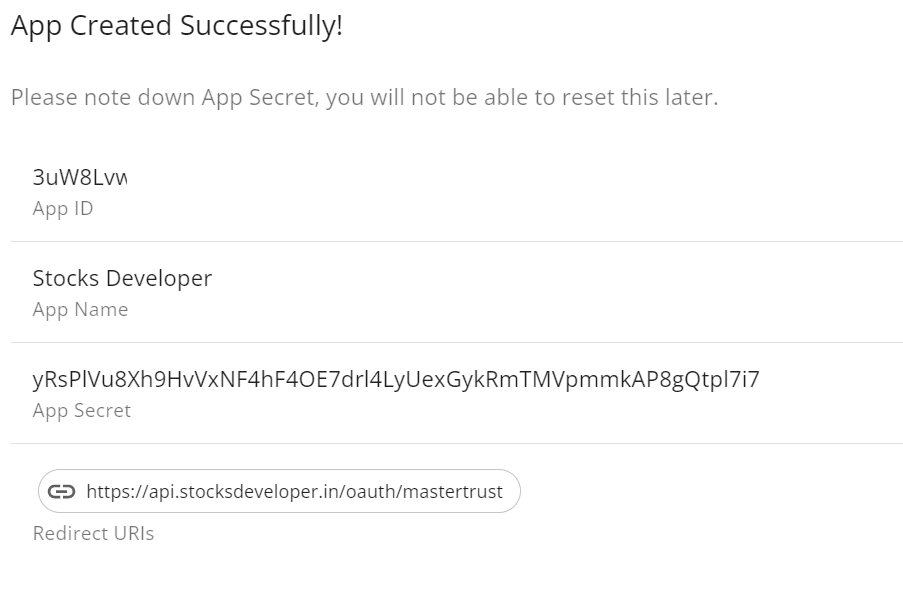

Screenshot 2: App Details
Step 2: Get TOTP Key
- Install Google Authenticator app on your phone
- We need the secret totp key that is provided by Mastertrust when you enable the TOTP
- If you have already enabled TOTP, but you do not have the key, then you can disable TOTP and re-enable it. (See screenshot 3 – Totp reset)
- Login to (https://masterswift-beta.mastertrust.co.in/)
- The system will ask you to Activate Totp(See screenshot 4 – Activate Totp)
- Scan the QR Code in your phone on Google Authenticator
- Click Unable to Scan? Copy the code
- Copy the code (Totp Key) that is shown below & save it in notepad
- Enter TOTP shown in your Google Authenticator
- Click Activate

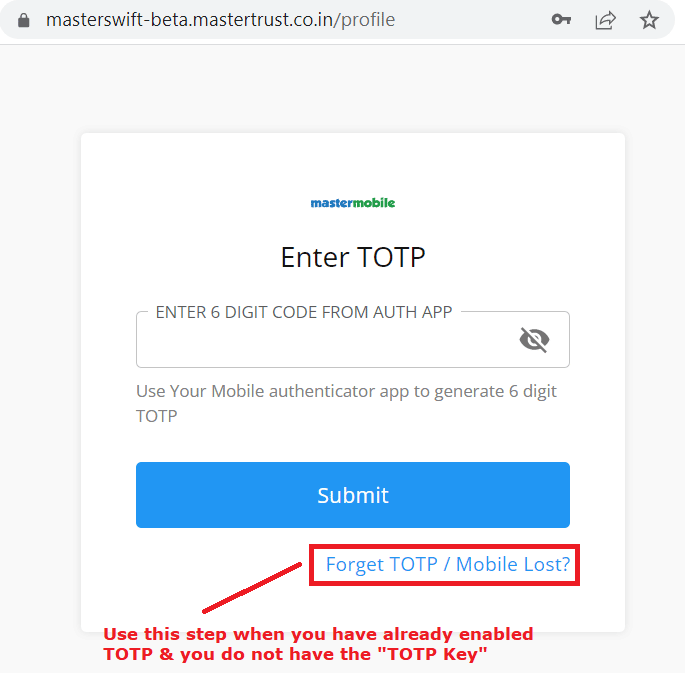

Screenshot 3: Totp reset

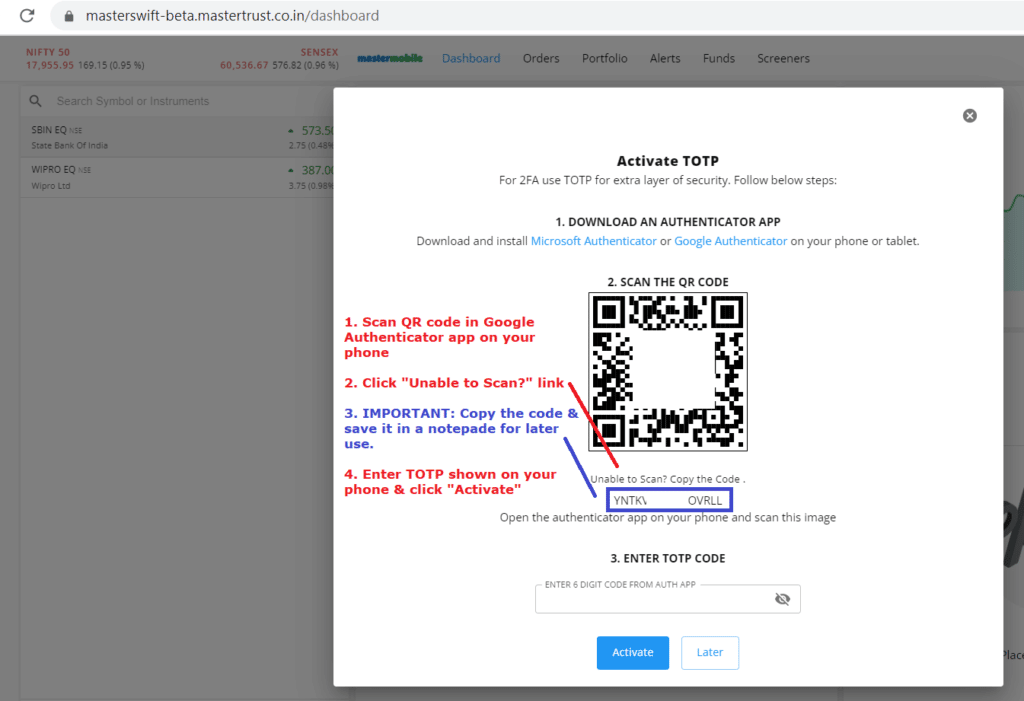

Screenshot 4: Activate Totp
Step 3: Create a new Account
- Login to AutoTrader Web & go to menu (Settings -> Trading Accounts)
- Click Create Button at the top
- Select Stock Broker: Mastertrust
- Enter your Mastertrust Trading Account Login ID
- Enter your Mastertrust Trading Account Login Password
- Enter your Mastertrust TOTP Key (which we obtained in Step-2)
- Enter your App Secret (generated above) in App Secret field
- Enter your App ID (generated above) in User ID (API) field
- Click Validate button
- Click Save after successful validation
- See below (Screenshot 5: Add Mastertrust account in AutoTrader Web)
- That’s it, you have successfully added your Mastertrust account. Do not forget to read these known limitations.

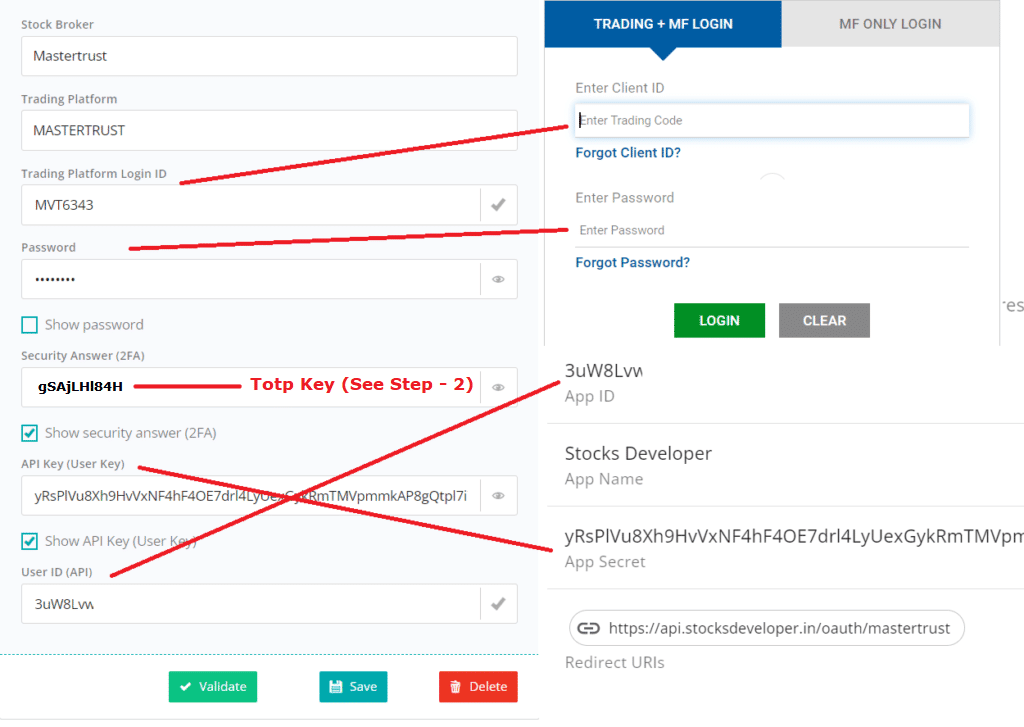

Screenshot 5: Add Mastertrust account in AutoTrader Web
Static IP Setup
There are two ways to get a Static IP for your trading account:
- Option A — Auto-assign IP (recommended for most users): Our system assigns a dedicated Static IP from our pool.
- Option B — Bring Your Own IP (BYOIP): You supply your own proxy or IPv6 address. Use this if you already have a dedicated VPS or IPv6 block.
Both options are described below.
Option A — Auto-assign IP
This is a 2-step process:
1. Get your Static IP from our system first
Before creating your broker API, get your static IP from us:
- In our system, go to Settings → Trading Accounts → Add Account
- Select your Broker and enter your Login ID
- Click “Auto-Assign IP” button — the system will immediately reserve a static IP for you
- Note down the IP shown:
- IPv4 → One primary IP is provided
- IPv6 → Both primary and secondary IPs are provided
Your IP is reserved for 24 hours. Save your account within this time to permanently assign it.
2. Create your Broker API using the Static IP from Step 1
Now go to your broker’s API creation screen and fill in the details:
- IP Type: IPv4 or IPv6 (as assigned in Step 1)
- Primary Static IP: (shown in Step 1)
- Secondary Static IP: (shown in Step 1 — only for IPv6)
- Algo Registration Type: Non-Registered
- API/Algo Category: “Below” or “Less than” 10 orders per second
Once the broker API is created, go back to our system, add any API credentials which may be pending, click Validate and Save the account. The static IP will be automatically applied to your account.
For further help, check this YouTube video showing “How to map Static IP?“
Option B — Bring Your Own IP (BYOIP)
Use this option if you have a dedicated VPS or proxy server that you want to use instead of an IP from our system.
Note: Only one IP source can be active at a time. Activating BYOIP will automatically remove any system-assigned IP, and vice versa.
Step 1: Save your proxy in “My Proxies”
Before assigning a proxy to an account, register it once in your proxy library:
- Go to Settings → My Proxies
- Click “Add Proxy”
- Fill in the details:
| Field | Description |
|---|---|
| Label | A friendly name for your reference (e.g. “Zerodha VPS”) |
| Proxy Host | IP address or hostname of your proxy server |
| Port | Port number (1–65535) |
| Username | (Optional) Proxy authentication username |
| Password | (Optional) Proxy authentication password |
- Click Save
You can add multiple proxies here and reuse them across accounts.
Step 2: Assign the proxy to your trading account
For a new account (before saving):
- While adding a new account, enter your Broker and Login ID
- Click “Bring Your Own IP”
- Select the proxy from your saved list
- The proxy is reserved immediately — proceed to fill in remaining account details and Save
For an existing account:
- Go to Settings → Trading Accounts
- Click the pencil icon to edit your account
- Click “Bring Your Own IP”
- Select the proxy from your saved list and click “Apply”
- You will see the proxy displayed with a “Your IP” badge
Changing your proxy
- Click “Bring Your Own IP” again on the account edit screen
- Select a different proxy from your list and click “Apply”
Removing your proxy
- Click the “Remove” button next to the IP display
- The system will clear your proxy and return the account to unassigned state
- You can then use “Auto-Assign IP” to get a system IP instead
Managing your proxy library
- Go to Settings → My Proxies at any time to add, edit, or delete saved proxies
- Deleting a proxy from “My Proxies” does not affect accounts already using it
